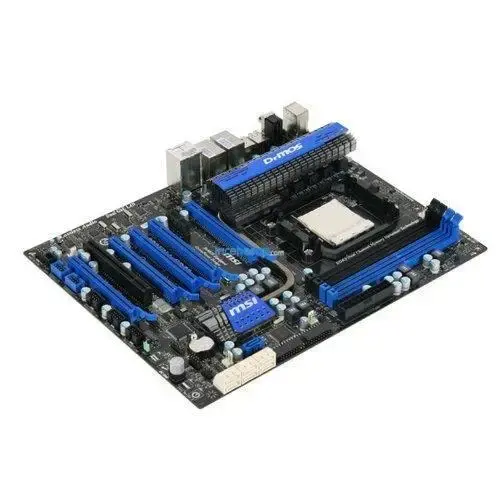

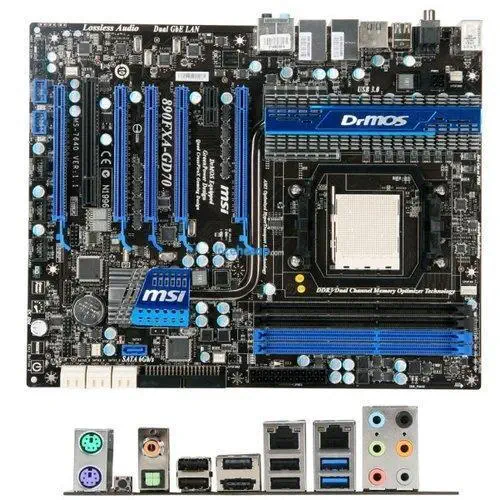

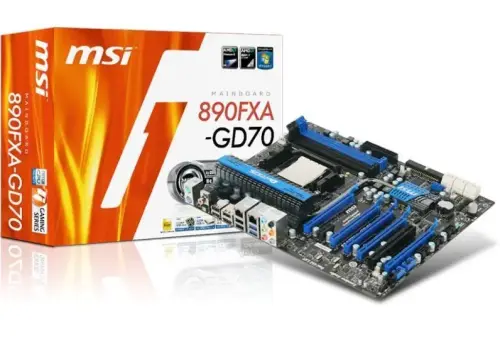

MSI 890FXA-GD70 890 DDR3 VGA +GLAN+SATA2 16X

MSI 890FXA-GD70 890 DDR3 VGA +GLAN+SATA2 16X

TEKNİK ÖZELLİKLERİ
AMD Socket AM3
AMD® RD890/SB850 Yongaseti
5200MT/s FSB Desteği
4 x DDR3 2133 MHz DIMM Bellek Yuvası (Maksimum: 16GB)
1 x PCI, 1 x PCI-E x1, 5 x PCI-E x16
6 x S-ATA3, 1 x S-ATA2 Portu
Arka Panelde 7 Adet, Anakart Üzerinde 3 Adet USB Portu
Realtek 8111DL Tümleşik Ethernet Kartı
Realtek® ALC889 Tümleşik Ses Kartı
ATX Form Boyutlar: 24.5cm(L) x 30.5cm(W)

CPU
• 64bit AMD® Phenom II X6/X4/X3/X2, Athlon II X4/X3/X2 and Sempron CPU.
Please refer to CPU Support for compatible CPU; the above description is for reference only.

Hyper Transport Bus
• HyperTransport 3.0 supporting speed up to 5200MT/s

Chipset
• AMD® 890FX and SB850 Chipset

Main Memory
• Supports four unbuffered DIMM of 1.5 Volt DDR3 800/1066/1333/1600*/1800*/2133* (OC) DRAM, 16GB Max

Slots
• 5 PCI Express 2.0 slots
- PCI_E1 supports up to PCIE x16 speed (when PCI_E3 is empty)
- PCI_E5 supports up to PCIE x16 speed (when PCI_E6 is empty)
- If you want to install two graphics cards, please use PCI_E1 & PCI_E5 slots
- PCI_E3 & PCI_E6 support up to PCIE x8 speed
- If you want to install four expansion cards into PCI_E1, E3, E5 & E6 slots, these four PCIE x 16 lanes  will auto arrange from x16/ x0/ x16/ x0 to x8/ x8/ x8/ x8
- PCI_E4 supports up to PCIE x4 speed
• 1 PCI Express 2.0 x1 slot
• 1 PCI slot, support 3.3V/ 5V PCI bus Interface.

On-Board IDE
  One IDE port by JMicron® JMB363
  Supports Ultra DMA 66/100/133 mode
  Supports PIO, Bus Master operation mode
  Can connect up to two IDE devices

  On-Board SATA
  6 SATA III (1~6) ports by AMD® SB850
  Supports storage and data transfers at up to 6Gb/s
  1 SATA II (SATA7) port by JMicron® JMB363
  1 eSATA II / USB Combo port by JMicron® JMB363
LAN

  Realtek PCI-E GbLAN controller 8111DL
  Integrated Fast Ethernet MAC and PHY in single chip
  Supports 10Mb/s, 100Mb/s and 1000Mb/s
  Compliance with PCI-Express Bus specification v1.0a

  IEEE1394 / FireWire
  VIA® VT6315N chipset
   Supports up to two 1394 ports. (pinheader x2)
   Transfer rate is up to 400Mbps.

   Internal I/O Connectors
